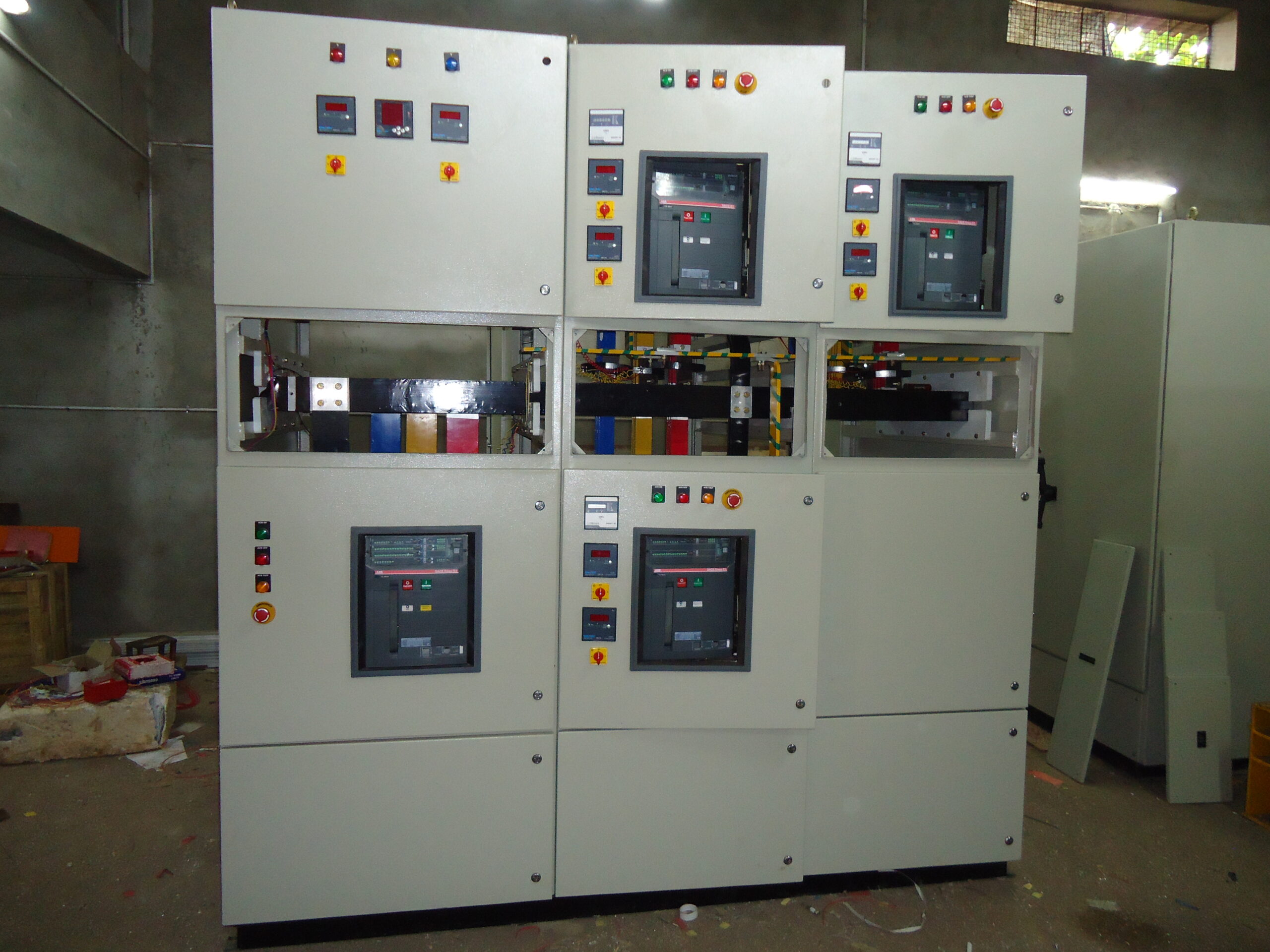

PCC Panel
Power Control Centre is used for distribution and control of various power source used in industry. Normally Power Control Centers is installed near power source hence fault level is high. Busbar system in Power Control Centers are designed to suit the fault level as well as temperature rise to 40°c above ambient. Ample space is provided for cable termination. Various protections viz short circuit, overload, earth fault, under voltage etc are provided to protect source and equipment.
Electrical System Specifications
| Specification | Details |
|---|---|
| Applications | Operation, Control & protection of distribution network with or without PLC/BMS Connectivity |
| System | 3 Phase, 3 or 4 wire, 50Hz |
| Rated Current | Upto 6300 Amps |
| Operational Voltage | 110/230v 415v AC |
| Rated Insulation | 1000V |
| Rated Service Voltage | 690V |
| Ambient Temperature | 45°C |
| Short Time Current | 50KA for 1Sec, 105KA peak |
| Degree of Protection | IP42-IP54 |
| Form of Separation | Upto 3B/4B (Optional Type 5) |
| Type Tested for | Short Time Current withstand Temperature Rise Degree of Protection |
| Bus Bar System | Interleaved above 1600A |
| Bus Bar | Aluminium or Copper |
| Reference Standard | IEC61439-12009, IS:8623 |
| Feeder Configuration | Semi Drawout or Fixed Type |
